OK1KIR EME Team - LOGs & Statistics, 2.3 GHz

2.3 GHz

QRV CW & JT65
TX/RX 2301, 2304, 2320, 2400 and 2424 MHz

Equipment:

— Existing 4.5m solid dish (f/D= 0.42) extended to 6.1m (f/D=0.31)
    by zinc-coated mesh (pitch 6.3 x 6.3mm, wire 0.6mm), el-az mount
square septum feed with OM6AA 3-collar choke
linear feed based on OM6AA
– TS790 + audio filter Timewave DSP 59+
– transvertor 2301/2304/2320/2400 and 2424MHz to IF 145 MHz
– Modified G4DDK VLNA, MGF4919G (NF≈0.4dB) + RX relay in plastic box
– SSPA PA 4 x MRF21125 – 300 W at feed

First QSO on 5.5.1984 with OE9XXI
WAC - 9.9.2008
WAC JT - 7.12.2015

ModeQSOInitialDXCCLocatorFieldUS StateWAC CQ ITU
ALL (CW/SSB/JT/QRA)78818262144402062328
ANALOG (CW/SSB)72316047124281861621
DIGITAL (JT/QRA)6550374527361921

Area: Type of map: Mode:

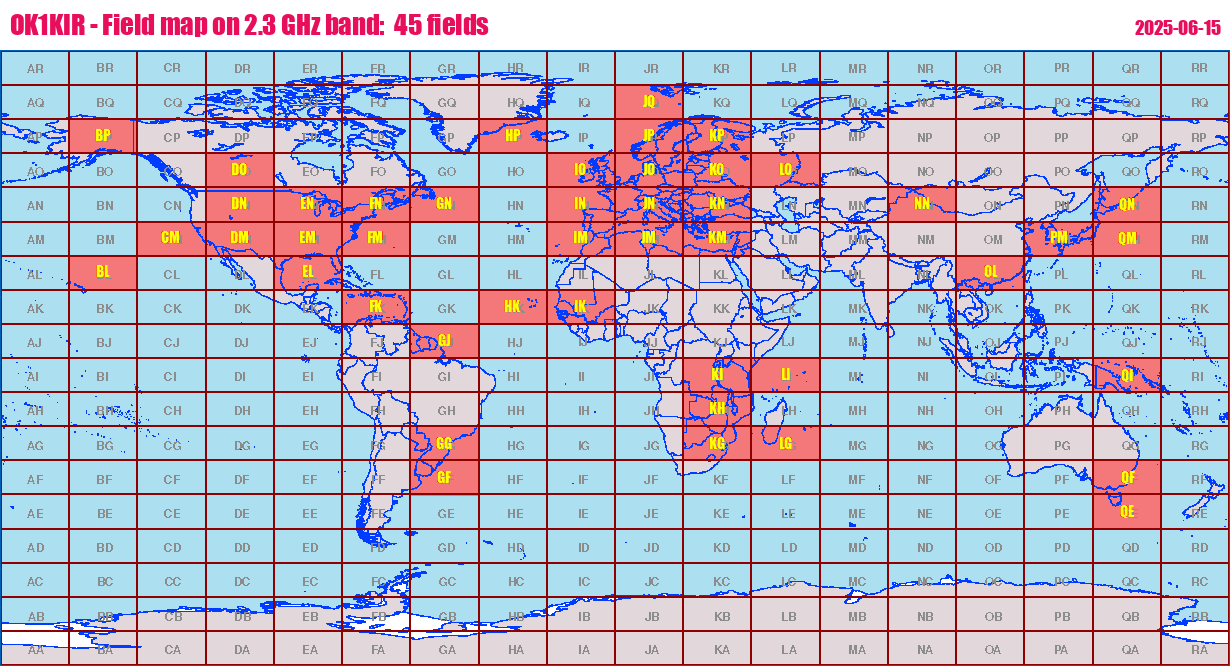

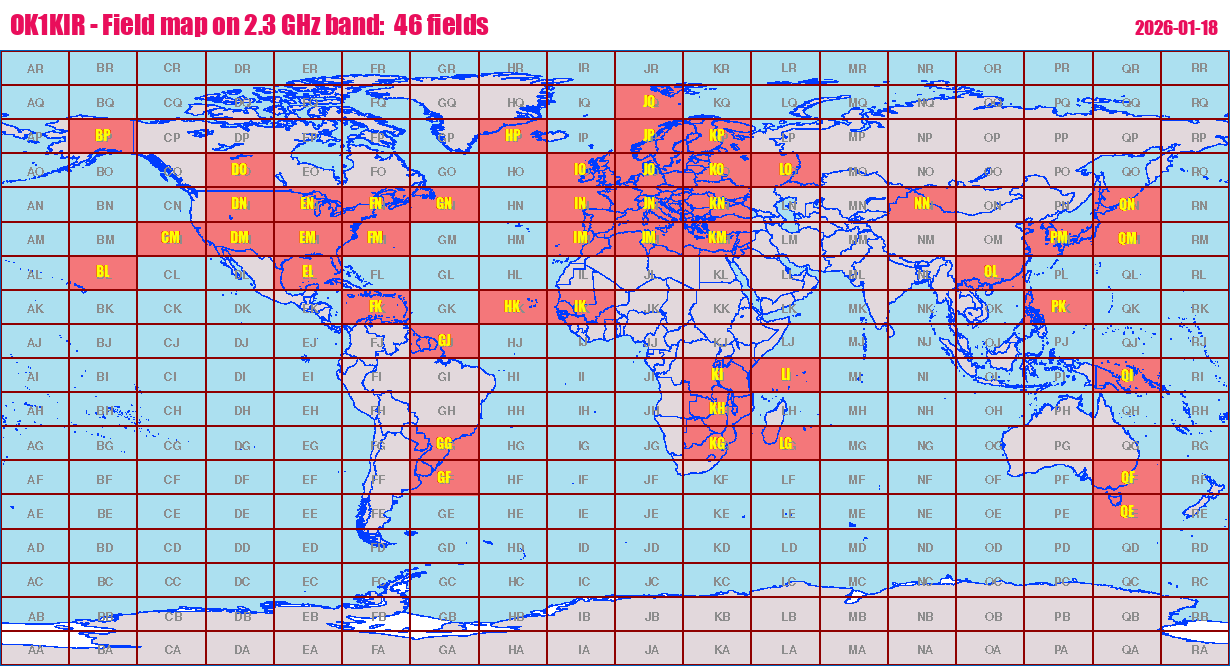

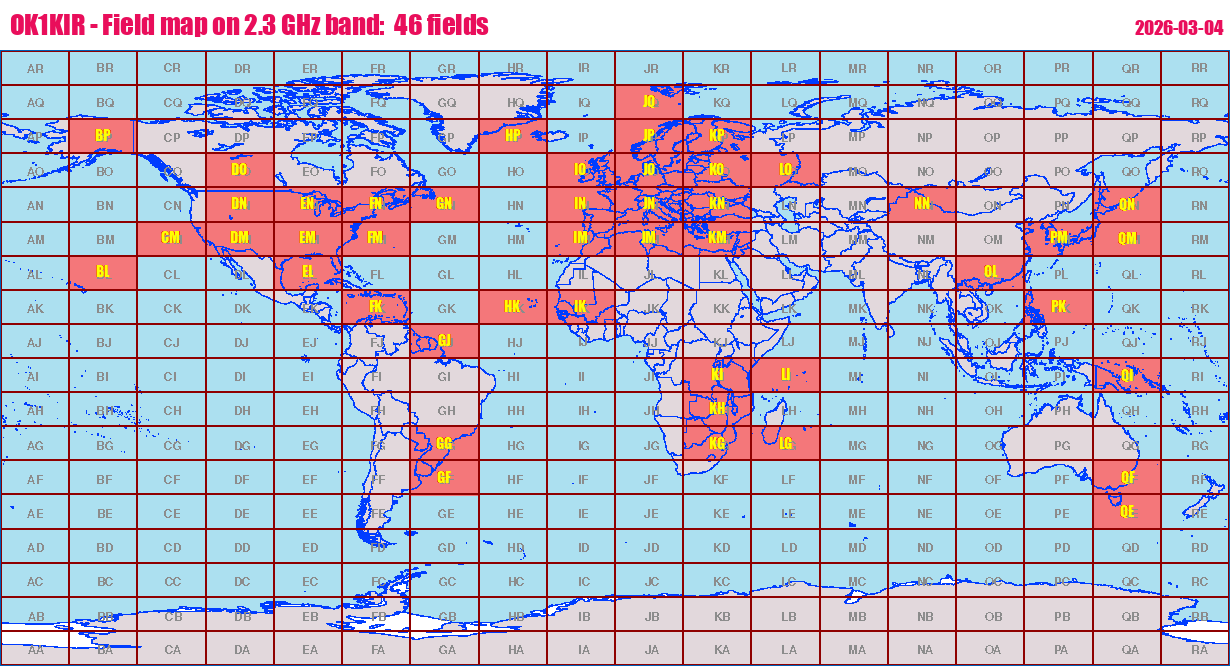

World map: OK1KIR - Field map on 2.3 GHz band:  40 fields
